Old Scene, New Kray

[talats]

In this days I did some test on some old scene with new Kray.

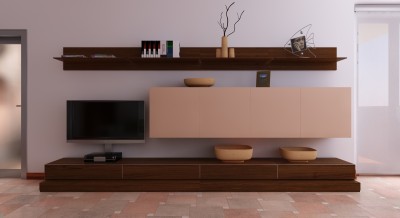

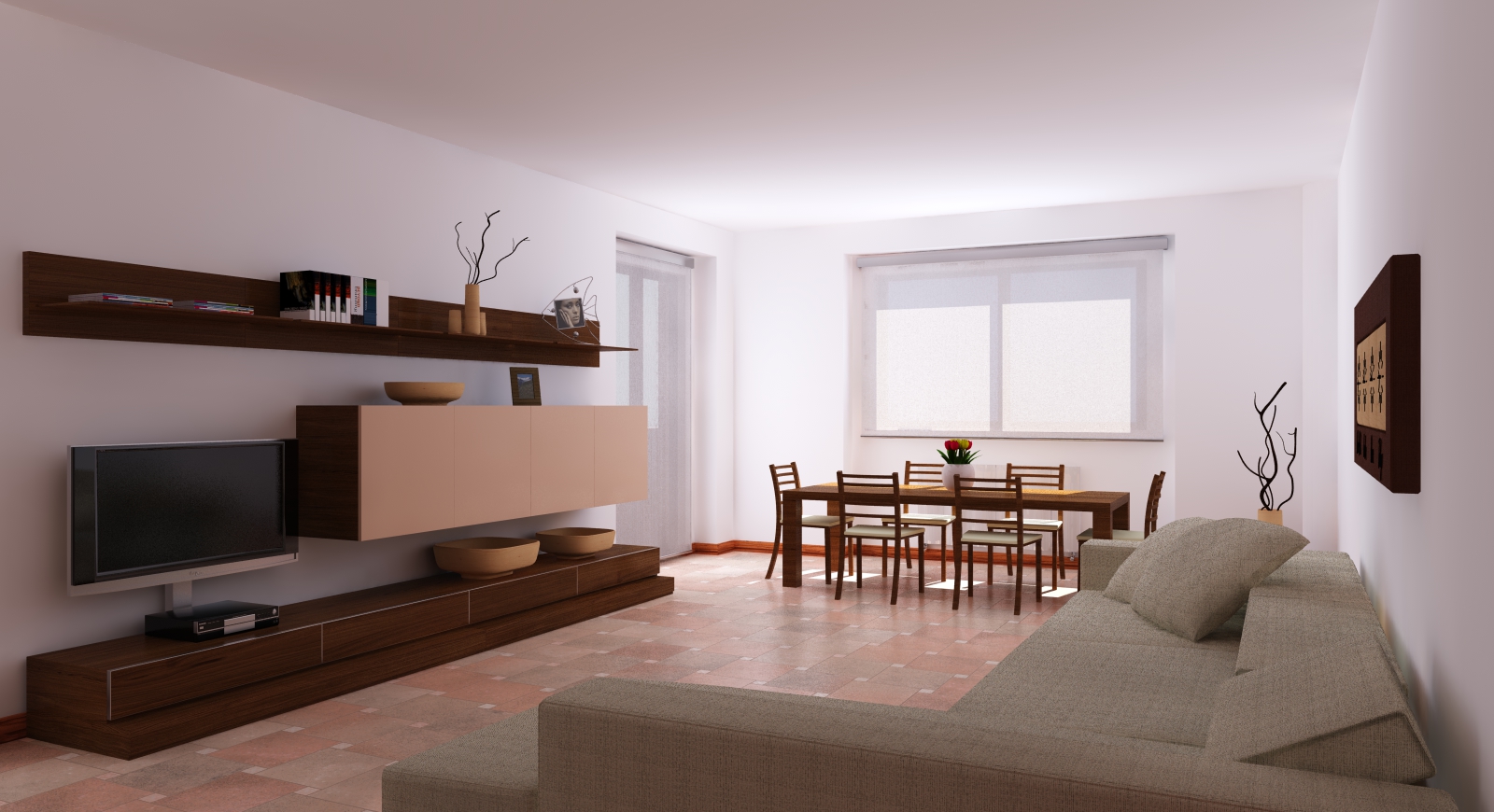

The images below has been rendered respectively in 12 and 10 minutes on a quadcore q9650, 8 giga of ram. I used louminous poligons in the windows and physical sky.

The previous versions, somewhere on this forum, needed of about between 50 minutes and over than 1 hour (with a lighing system based on physical Sky and area Lights instead of lumi poly).

Waiting for your advises

Roberto

[salvatore]

very nice light!
i like this soft light. Very natural.
the time render is very very fast. Medium setting?

[talats]

very nice light!
i like this soft light. Very natural.
the time render is very very fast. Medium setting?

Settings are as follow:

Footer Commands: recurse 20; importancegammamultiplier 1.4; lwo2unseenbyrays_affectsgi 0; (this is very important for the lighting and reflections, just look to Janusz Threads)

GI Resolution: AUTO

PHOTONS SETTINGS
Global Photons: 500.000
Use Autophotons
N: 500
Low 20%
High 80%
Steps 4
Precache Distance 50%
Precache Blur 100%

FG SETTINGS
Min/Max Rays 400/800
Prerender 100%
Passes 2
Sploth Distance 0.05
Sensitivity 0.05
FG Transparency/Refraction: Activated

Spatial Tolerance: 0.07
Angular Tolerance: 30°
Min/Max Distance 40% - 1000%
Blur Samples 2.0

SAMPLING SETTINGS
Preset High
Pixel Filter Box
Filter Radius 0.6
FSAA
Rotated Grid

QUALITY SETTINGS
Area Light Threshold 0.001, Min/Max recursion 2/6

Blurring Threshold 0.001, Min/Max Rays 1000/4000

Octree Detail: High


Roberto

[salvatore]

thanks so much for the specific on your settings.
I will try my scene with your suggestions.
just a clarification: the illuminated panel is as big as the window? smallest? bigger? How far is the window?
thanks so much for your reply

[khan973]

It looks clean, but maybe a lack of contact shadows, and there is an overall pinkish color, maybe because of your floor?

[talats]

for salvatore

the lumi polys are smaller than windows and are placed inside the room really closed to windows with a luminosity power between 400% and 600% (it depend from the size of windows, from how many windows you have and from the size of the room).

For Khan
You are right but it is somenthing I wanted and it depend from the color of lights. Later I will do a render more "cold" changing lights color.

thanks for your advice
Roberto

[jure]

In this days I did some test on some old scene with new Kray.

The images below has been rendered respectively in 12 and 10 minutes on a quadcore q9650, 8 giga of ram. I used louminous poligons in the windows and physical sky.

The previous versions, somewhere on this forum, needed of about between 50 minutes and over than 1 hour (with a lighing system based on physical Sky and area Lights instead of lumi poly).

Waiting for your advises

Roberto

Nice work. You are improving. Keep on working on the materials.

[talats]

Thanks Jure.

Talking about materials, what would you do on them?

Roberto

[jure]

Thanks Jure.

Talking about materials, what would you do on them?

Roberto

add more reflection...
